Brand Name : | U TECH |
Model Number : | UT-600 |
Certification : | CE SGS |
Price : | USD 2000-3000 Set/Sets |
Payment Terms : | L/C, T/T |
Supply Ability : | 15 Set/Sets Per Month |
Delivery Time : | 35 work days |

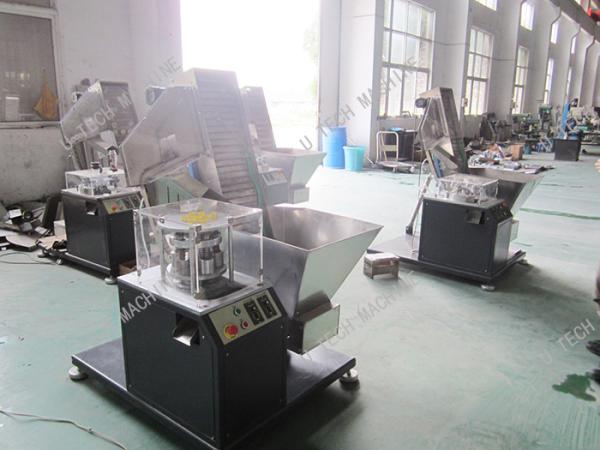

Bottle Cap Lip Edge Folding Machine 220V 380V Voltage PP PE Material
Introduction
Our bottle cap folding machine is mainly designed for caps with long and tiltiing out side anti-theft slice in the anti-theft ring and hard to cap on the bottles. The machine can be effectively solve the problem of the cap anti-theft ring's inner folding .
The folding machine is specially developed for those complex lids hard to match with bottle because the built-in anti-theft ring extends outward. This type cap must need a folding process after molding in order to allow a proper capping. It is able to satisfy different customer with different capacity and different equipment. It can connect with the molding machine, easy for production.
1. Main cap dia. | 26 - 38 mm |
2. Max. cap diameter | 38 mm |
3. Min. cap diameter | 26 mm |
4. Max. cap height | 25 mm |
5. Max. Productivity | 25000 pcs / hour |
6. Installed electrical power | 1 KW |
7. Consumed electrical power | 1.5 KW |
8. Consumed air consumption | 100 NL / min |
![]() |
