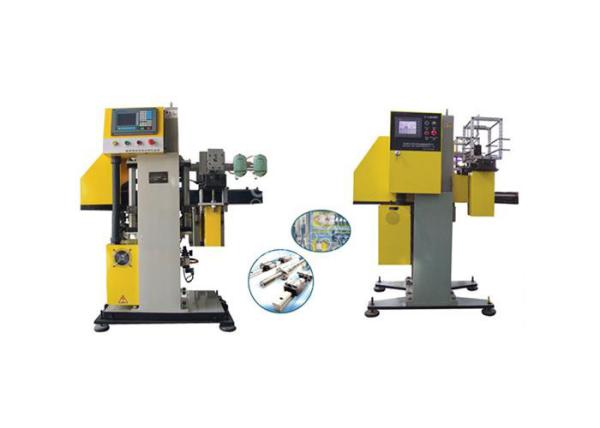

In mold labeling machine Double Stations working in mould labelling
machine
Introduction
In-mold labeling is used in the packaging industry as an
alternative for printing molded parts with special requirements,
such as a highly flexible design or when the desired print image
cannot be immediately applied on the molded part. The labels are
usually printed polypropylene foils only a few tenths of a
millimeter thick. The advantage of IML is that it integrates a
downstream process with the injection molding process. Using
handling technology, the labels are inserted into the mold and in
parallel the parts are removed. The labels are held in the mold
with a static charge or vacuum. Standard Milacron injection molding
machines already have a high injection rate for thin-walled molded
parts, so that IML can be employed without additional adaptations.
But the requirements on mold making and handling technology are
greater.
Features
1. opened program design,wider application,can match with more
models of blow molding machine;
2. adopt touch screen operation,different language operation is
optional;
3. easy operation,can stop at any position,increase labeling
efficiency;
4. adopt SMC advanced vacuum technology,make action much more
reliable and stable;
5. adopt servo driven system,can set speed for each section
accordingly;
6. adopt Hiwin guide rail and lead screw;
7. adopt Schneider electric device;
8. system work status and all input output information are
displayed on screen,easier to judge and check.
9. with perfect protection function,and can set many kind of
function;
10. this equipment with perfect program self-diagnostics system.
Parameter
Description | Automatic labeling machine machine |
Surface NO. | 2 surface |
Main Specifications | HIM--special PC for IML(American INTEL chipset) servo Motor --Japan SINO(or Taiwan DongYuan) Ball screw and guide rail--ABBA High-precision vacuum generator--Germany FESTO Air valves--TAIWAN Airtac |
Size | 1420×860×1560(mm) |
Weight | 450kg |
Power | 400W |
Air pressure | 0.4~0.8MPa |
Time of labeling | 1.9~5s |
Precision of labeling | +-0.15mm |
Size of container being applied to | 0.1L~10L |
Lead Time | 15-20days |
Warranty Period | 2 year |
Payment Terms | 30% T/T down payment, 70% T/T paid off after samples approval
before mould delivery |
Price Lalid Time | 30 days |
Remarks | When special product , please inform us in advance. |
Drawing
Our Services
Before order service
We will according to your requirement make details quotation for
you.
We can send you some our machine running video similar to your
product.
If you come to china,we can pick you up from airport or station
near our city.
After order service
We will start to make machine,and take some picture by 10 days of
our production process .
Our engineer can design the layout according to your requirement.
We will supply commission service if customer need.
After-sales service
We will testing machine ,and take some video and picture to you if
u not come to china inspect machine.
After testing machine we will packing machine ,and delievery
container on time.
We can send our engineer to you country help you install and
testing machine.we can training you technical staff free until they
can running machine independent.
Our company will give you all machine with 2 years guaranteen.In 2
years you can get all spare parts free from us.we can send you by
express.
FAQ
Q1: Are you a trading company or a manufactory?
A1: We are a manufactory,can give u best service .
Q2: What’s your guarantee or the warranty of the quality if we buy
your machines?
A2: We offer you high quality machines with 2 years guarantee . we
will give u spare part free in 2 years
Q3: When can I get my machine after I paid?
A3: We will deliver the machines on time as the date we agreed both
side.
Q4: How can I install my machine when it arrives?
A4: We will send our engineer to your side as soon as you get all
your machines ready , for testing and teaching your technicians how
to run the machines.
Q5: How about the spare parts?
A5: After we deal down all the things , we will offer you a spare
parts list for your reference.
