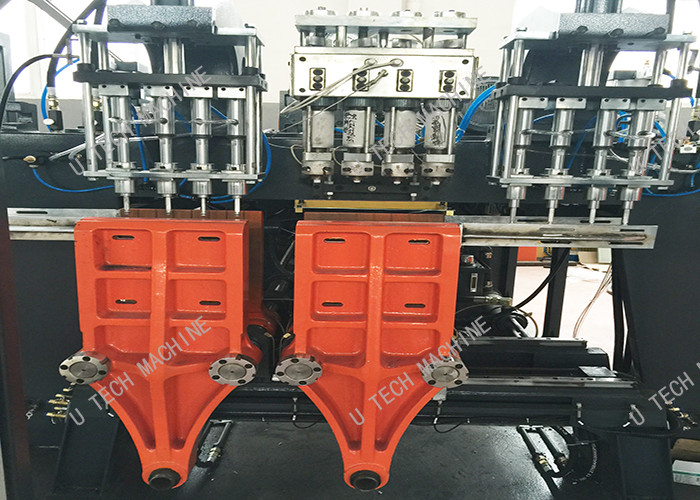

    Medicine Bottle Plastic Blow Molding Machine / Extrusion Moulding Machine

    Ask Lasest Price
    Brand Name : U TECH
    Model Number : BST-5
    Certification : CE SGS ISO
    Price : discussible
    Payment Terms : L/C, T/T
    Supply Ability : 15 Set/Sets per Month
    Delivery Time : 45 work days
    • Product Details
    • Company Profile

    Medicine Bottle Plastic Blow Molding Machine / Extrusion Moulding Machine

    Plastic HDPE extrusion blow molding machine 5L for medicine bottle

    Introduction

    Extrusion blow molding is one of the most used methods for forming packaging containers.
    Extrusion blow molding is a process in which a thermoplastic raw material is plasticized by an extruder and then passed through a specific die to obtain a tubular parison in a hot melt state. When the tubular thermoplastic parison still in a softened state reaches a predetermined length After entering the mold, the mold is closed, and then the compressed gas is introduced, and the blank is deformed along the cavity by the pressure of the gas, thereby blowing into a hollow product having a short neck opening.

    1. The screw adopts high potency melt to make sure the material well mixed.

    2. Adopt frequency control of motor system to reduce the power consumption.

    3. Adopt horizontal movement frame to improve stability and speed.

    4. The oil cylinder is in the center of the moldboard, uniform stress for quality products and increase life span.

    5. High stench guild rod controller the mold open and clamp, to enhance the steadily and high efficiency.

    6. The extrusion head use spreader or screw type to well mixed the thickness and easy to change different color.

    7.Advanced design to eliminate the melt material degrade in the runner, to avoid the perform draw-down and the welding line.

    8. The precise time control system assured good quality, suitable weight and reduces production cycle.

    9. Freely to move the extrusion foundation backward or forward to make the exchange of the mold easy.

    10. Multi-function bottom blowing type for shaped products.

    11. The mechanical arm can take out the product automatically.

    Parameter

    SPECIFICATIONS FOR 5 L Blow Molding Machine




    Product Range

    Max. Product Volume

    5 L


    Product Max. Dia.

    18 CM

    Thickness of Mould

    150-220 mm

    Width of Mould Board

    303 mm

    Distance of Mould Board

    230 mm

    Production Speed

    200-300 PCS/HR

    Applicable Raw Material

    HDPE/LDPE/PP

    Distance of Mold

    160-500 mm

    Force of Closing Mold

    60 KN


    Machine Parameters

    Screw Dia.

    75, 80, 90 mm

    Screw Rod Length/Dia. Ratio

    25:1

    Speed Control Method

    PLC


    Energy Consumption

    Heating Power

    15 KW

    Hydraulic Pump Power

    4.5 KW

    Extruder Motor Power

    18.5 KW

    Air Consumption

    0.6 m3/Min.

    Machine Dimension and

    weight

    Dimension

    1960x1180x1960mm

    Weight

    4.5 Ton


    Medicine Bottle Plastic Blow Molding Machine / Extrusion Moulding Machine
