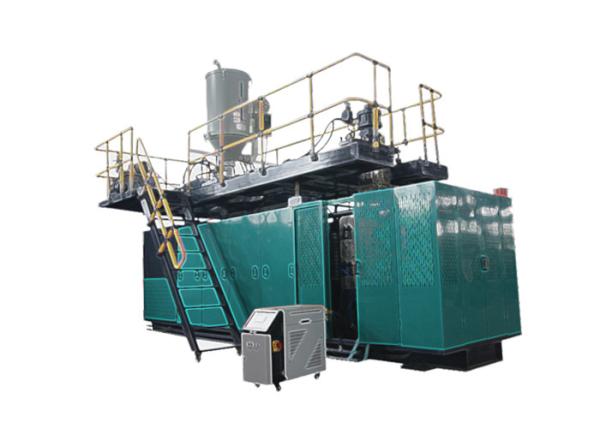

Fully Automatic plastic Blow Moulding Machine For 4 5 gallon PC
barrel
Introduction
1. the electronic control system: Japan's Mitsubishi PLC computer and
human-machine interface (English or Chinese) control, color
touch-screen operation. All the process set to change, retrieval,
monitoring, troubleshooting and other functions are implemented on
the touch screen, no point of contact with the working principle,
components and durable.
2. the hydraulic system: proportional pressure control, with
imported brands Yuken hydraulic components, stable and reliable.
3. the plasticizing system: efficient plastics mixing screw, to
ensure plasticizing full uniform.
4. the speed control system: VVVF + alloy steel and hard gear
reducer, speed stable, low noise, durable.
5. the opening and closing mold, mold transfer system: beam arm,
three position, center locking clamping mechanism, to ensure
long-term use. Clamping force balance, no deformation, the use of
body translation mode (ball linear guide), high precision, low
resistance, fast.
6. blowing the needle holder: blow the whole Square-type needle
holder, a solid does not shift to ensure a smooth incision
products.
Feature
Infrared lamps adoped in the pre-heater ensures PET preforms being
heated evenly.
Mechanical-double-arm calmping ensures mould being tightly closed
under hight pressure and high temperature.
Pneumatic system consists of two parts. pneumatic acting part and
bottle blowing part in order to meet different requirements for
both acting and blowing. It provides sufficient steady high
pressure to blowing. It provides sufficient steady high pressure to
bloww large irregular shape bottles.
Equipped with silencer and oiling system to lubricate the
mechanical pars of the machine.
Operated step-by-step and in semi-auto maode.
Wide-mouth jar and hot-fill bottles can also be made.
Parameter
SPECIFICATIONS & TECHNICAL DATA |
| Screw Diameter | mm | 75 |
Plasticizing Capacity | Kg/hour | 90 |
Temperature Control Zone | No. | 5 |
| Single Head Max Die Diameter | mm | 230 |
Double Head Central Distance | mm | 230 |
Triple Head Central Distance | mm | 160 |
Four Head Central Distance | mm | 120 |
| Clamping Force | KN | 180 |
Platen Size | mm | 500x550 |
Opening Distance | mm | 250~750 |
Moving Distance | mm | 560 |
Max Mould Size | mm | 600x500 |
| Extrusion Motor Power | KW | 30 |
Pump Motor Power | KW | 11 |
Machine Total Power | KW | 72 |
Average Power Consumption | KW | 37 |
