    5L Jerrycan Double Station Blow Moulding Machine Stainless Steel Material

    Ask Lasest Price
    Brand Name : U TECH
    Model Number : BST-80
    Certification : CE SGS ISO
    Price : Discussible Price
    Payment Terms : L/C, T/T
    Supply Ability : 15 Set/Sets per Month
    Delivery Time : 45 work days
    • Product Details
    • Company Profile

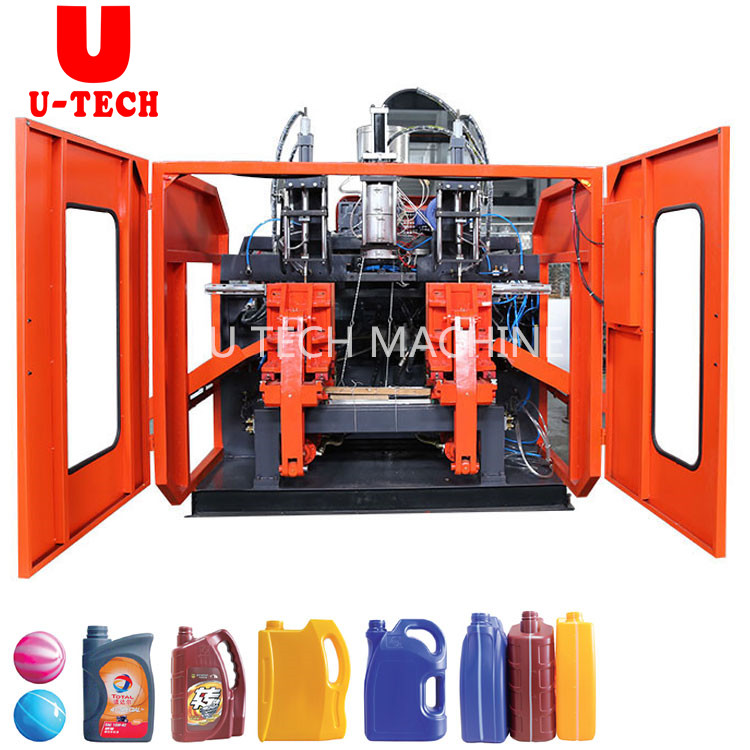

    5L Jerrycan Double Station Blow Moulding Machine Stainless Steel Material

    Automatic 5L Jerrycan Double Station HDPE Extrusion Blow Molding Machine Price

    Introduction

    Extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines, chemical products, pesticides, detergents, etc with material of PE,PP,PVC from 5ml to 20L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.


    Feature:


    1. Original FESTO air cylinder.


    2. Minimize your initial investment by starting small.


    3. Add additional systems economically as your business grows.


    4. Bottles of different sizes can be produced simultaneously to meet your exact requirements.


    5. Change over from one size to another can be completed simply and quickly.


    6. The tooling costs (molds) are low since the design of the system is simple.


    7. Systems can be dedicated to produce particular bottle sizes. A short operator-training period due to the simplicity of the design.


    8. Maintenance costs are kept to a minimum and highly-trained personnel are not required.


    Parameters


    Category

    Item

    Unit

    BST70

    BST80

    BST90
    Extruder Unit
    Screw diameter

    mm

    70

    80

    90

    Screw L/D ratio

    L/D

    25:1

    25:1

    25:1

    Plasticising capacity

    kg/hr

    80

    100

    120
    number of heating zone
    kw

    10

    12.5

    12.5

    extruder driving power

    zone

    4

    5
    extruder heating power
    Kw

    15

    22

    30
    Die headnumber of heating zone
    zone

    3

    3

    4
    power of die heating
    kw

    4

    6

    8

    max die-pin diameter

    mm

    250

    350

    400
    accumulator capacity
    kg

    3

    4

    6
    specificationsMax container capacity
    L

    20

    30

    50
    machine dimension
    M

    4*2.6*2.7

    5*3.1*3.2

    5*3.1*3.9
    total weight
    tom

    4.5

    7

    9

    Clamping Unit
    clamping force
    kn

    160

    300

    400
    platen opening stroke
    mm

    250-800

    350-1050

    350-1250
    max mould size
    mm

    520*600

    700*1000

    900*1200
    mould thickness
    mm

    260-400

    360-500

    360-600

    Power
    Oil pump motor
    kw

    7.5

    11

    11
    total power
    kw

    40

    63

    70
    fan power for screw
    kw

    0.72

    0.72

    0.72
    air pressure
    mpa

    0.7

    0.7

    0.7
    air consumptionm 3 /min
    0.9

    0.9

    0.9
    average energy consumption
    kw

    20

    28

    35


    Components list



    COMPONENTS NAME

    BRAND

    ORIGIN

    PLC

    MITSUBISHI

    Japan

    Operation screen

    SIMENS

    Germany

    Parison control system

    MOOG

    Japan

    Inverter

    MITSUBISHI

    Japan

    Pneumatic parts

    FESTO

    Germany

    Hydraulic pump and valve

    YUKEN

    Japan

    Transducer

    GEFRAN

    Italy

    Contactor

    SCHNEIDER

    France

    Relay

    SCHNEIDER

    France
