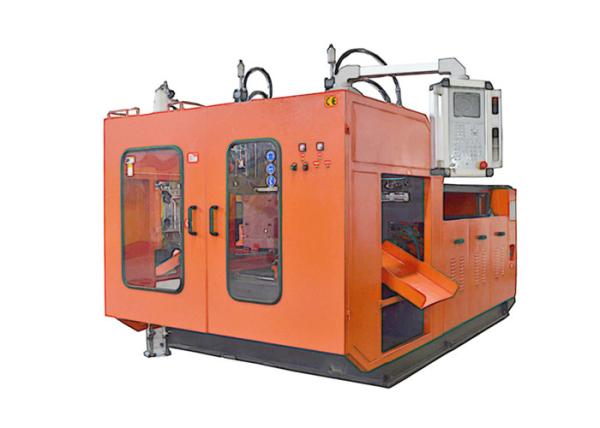

Jerry Can HDPE Blow Molding Machine / 5L Plastic Hdpe Drum Making Machine

    Buy cheap Jerry Can HDPE Blow Molding Machine / 5L Plastic Hdpe Drum Making Machine from wholesalers

    Buy cheap Jerry Can HDPE Blow Molding Machine / 5L Plastic Hdpe Drum Making Machine from wholesalers
    • Buy cheap Jerry Can HDPE Blow Molding Machine / 5L Plastic Hdpe Drum Making Machine from wholesalers

    Jerry Can HDPE Blow Molding Machine / 5L Plastic Hdpe Drum Making Machine

    Ask Lasest Price
    Brand Name : U TECH
    Model Number : BST-5
    Certification : CE SGS ISO
    Price : discussible
    Payment Terms : L/C, T/T
    Supply Ability : 15 Set/Sets per Month
    Delivery Time : 45 work days
    • Product Details
    • Company Profile

    Jerry Can HDPE Blow Molding Machine / 5L Plastic Hdpe Drum Making Machine

    Plastic Jerry Can Making Machine 5L Plastic Drum HDPE Blow Moulding Machine

    Introduction

    The company introduced German technology combined with practical applications to develop a mature series of plasticsExtrusion Blow Molding Machine Named Rules,Specially designed for small and medium-sized enterprises to provide cost-effective high-capacity models, suitable for the production of 1-5L plastic products, can install single-die head or multi-die head, to meet the high-capacity production, can be used to produce single-layer, double-layer or three-layer Extruded products. All machines are equipped with advanced control systems that fully comply with CE regulations and are manufactured with high standards to ensure stable and efficient machines.

    Feature


    1. Original FESTO air cylinder.


    2. Minimize your initial investment by starting small.


    3. Add additional systems economically as your business grows.


    4. Bottles of different sizes can be produced simultaneously to meet your exact requirements.


    5. Change over from one size to another can be completed simply and quickly.


    6. The tooling costs (molds) are low since the design of the system is simple.


    7. Systems can be dedicated to produce particular bottle sizes. A short operator-training period due to the simplicity of the design.


    8.Maintenance costs are kept to a minimum and highly-trained personnel are not required


    Parameter

    SPECIFICATIONS & TECHNICAL DATA

    Extrusion Unit

    Screw Diameter

    mm

    80

    Plasticizing Capacity

    Kg/hour

    110

    Temperature Control Zone

    No.

    5

    Continuous Head

    Single Head Max Die Diameter

    mm

    230

    Double Head Central Distance

    mm

    230

    Four Head Central Distance

    mm

    120

    Six Head Central Distance

    mm

    85

    Clamping Unit

    Clamping Force

    KN

    110

    Platen Size

    mm

    580x420

    Opening Distance

    mm

    150~450

    Moving Distance

    mm

    720

    Max Mould Size

    mm

    630x385

    Driving System

    Extrusion Motor Power

    KW

    30

    Pump Motor Power

    KW

    15

    Machine Total Power

    KW

    72

    Average Power Consumption

    KW

    42


    Jerry Can HDPE Blow Molding Machine / 5L Plastic Hdpe Drum Making Machine
