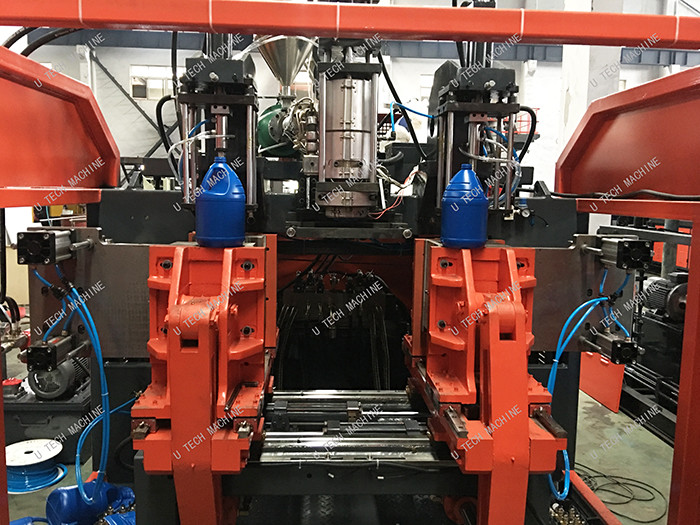

Blow molding machines for the production of 5l HDPE 5 liters of
canister engine oil bottle blow moulding machine price
Introduction
This machine is mainly used to produce IBC barrel, plastic tray,
and it adopts the international advanced computer control system
and wall-thickness control system that guarantee the evenness of
the wall thickness and the elegant appearance of the products to
meet clients' needs.
1. Extruding system :
Various screw design for high efficiency of mixing and elasticizing
the quality.
2. Diehead system :
1 layer single diehead, 2 layer double diehead, 2 layer diehead
with view stripe by centre feeding of out layer. Trible diehead.
3. Hydraulic pattern and pneumatic system :
We adopt the oil circulation system from America Vickers or Japan
YUKEN. The selecting of oil pump, circulation board and the unique
filter system, makes the oil circulation with faster speed,
stability in reducing speed, low noise, energy conservation and
long duration.
4. Electrical controlling system :
On the basis of our rich experience in extrusion field, we all
adopt high quality pneumatic accessories, and in accordance with
the requirement of each extrusion blow products, we design
different blowing article, air exhausting, air dryness and so on
blow system.
Parameter
SPECIFICATIONS & TECHNICAL DATA |
| Screw Diameter | mm | 80 |
Plasticizing Capacity | Kg/hour | 110 |
Temperature Control Zone | No. | 5 |
| Single Head Max Die Diameter | mm | 230 |
Double Head Central Distance | mm | 230 |
Four Head Central Distance | mm | 120 |
Six Head Central Distance | mm | 85 |
| Clamping Force | KN | 110 |
Platen Size | mm | 580x420 |
Opening Distance | mm | 150~450 |
Moving Distance | mm | 720 |
Max Mould Size | mm | 630x385 |
| Extrusion Motor Power | KW | 30 |
Pump Motor Power | KW | 15 |
Machine Total Power | KW | 72 |
Average Power Consumption | KW | 42 |
